Upgrade the Audi A4 / A4L / A5 Dashboard Without Losing the Factory Feel
This wide Android screen gives your Audi B9 a cleaner, more modern driving interface for navigation, CarPlay, Android Auto, media and vehicle information.
10.25” or 12.3” Android Screen with Wireless CarPlay, Android Auto and 4G
This iKAGOO Audi A4 A5 Android Head Unit 2017–2021 is a vehicle-specific upgrade for Audi A4, A4L and A5 B9 owners who want a larger screen, Android 13, wireless CarPlay, Android Auto, DSP audio options, WiFi/4G, camera input and supported factory function integration.
- Audi A4 / A4L / A5 B9
- 2017–2021
- 10.25” / 12.3”
- Android 13
- Bežični CarPlay
- Android Auto
- DSP Audio
- WiFi / 4G
Screen, Installation Look, CarPlay and Wiring — Before the Long Details
The buyer should immediately understand the product: a real Android head unit, not only a small CarPlay box.
Vehicle-Specific Wide Screen for Audi A4 / A4L / A5 B9
The screen gives your Audi a wider, cleaner interface while staying visually aligned with the horizontal Audi dashboard layout.
Use this upgrade when you want a larger display, Android apps, CarPlay, Android Auto, vehicle interface support and matched accessories in one system.

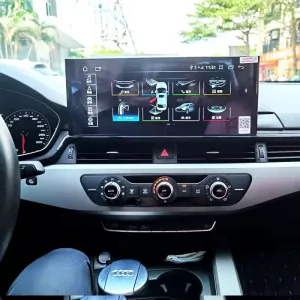

Installed Dashboard Look
The upgraded screen improves map visibility, media control and daily driving use while keeping the Audi B9 cabin clean and familiar.
Matched Harness and CANBUS Interface
The wiring harness and interface box help the screen communicate with the supported Audi factory system, steering-wheel controls, camera path and vehicle menu.
Original Menu and CarPlay Menu Switching
You can continue using supported original vehicle menu functions while adding phone-app convenience on the same upgraded display.
Music, Maps, Bluetooth and Daily Apps
The larger Android screen improves daily media use, phone connection, navigation and car-button operation where supported by the vehicle interface.
Brzi odgovor
This iKAGOO upgrade is a vehicle-specific Android head unit for Audi A4, Audi A4L and Audi A5 B9 models from 2017 to 2021. It upgrades the factory infotainment experience with a 10.25-inch or 12.3-inch touch screen, Android 13, wireless CarPlay, Android Auto, GPS/Glonass navigation, Bluetooth, WiFi/4G and DSP audio options. Supported original functions such as steering-wheel controls, factory menu access, original radio/CD functions, reverse camera display and Audi controller operation continue to work after correct connection and configuration. Before shipment, iKAGOO checks your vehicle year, dashboard layout, factory screen type, LHD/RHD position and connector configuration to prepare the correct version.
More Than a CarPlay Add-On: A Complete Audi A4 A5 Android Car Stereo Upgrade
A CarPlay-only module solves only one problem. This Android head unit gives your Audi B9 a larger screen, phone integration, navigation, media apps, camera input and audio tuning in one vehicle-specific system.
10.25” or 12.3” Screen Choice
Choose 10.25 inch for a conservative OEM-style look, or 12.3 inch for stronger map, media and camera visibility.
Bežični CarPlay i Android Auto
Use maps, music, messages and calls from your phone on the upgraded Audi screen with less cable clutter.
Factory Function Support
Supported Audi controls, factory menu access, steering-wheel buttons, reverse display and original audio functions are retained through the matched vehicle interface.
DSP Audio Options
Available DSP and EQ functions help you tune the cabin sound more precisely than a basic screen-only upgrade.
Navigation and App Use
Android 13 supports navigation, app use, online services through WiFi/4G and smoother daily map viewing on a larger display.
Camera and Parking Support
AHD/CVBS rear camera input and 360 panorama support help the screen work with supported reverse and parking camera configurations.
Built to Work With the Audi B9 Factory System
The goal is not to make your Audi feel like a universal aftermarket tablet. The matched screen, harness and interface are prepared to keep the supported factory system useful after the upgrade.
Supported Original Controls
- Original steering-wheel controls are supported after correct connection.
- The factory Audi controller / MMI knob remains usable where supported by the vehicle system.
- Original car settings and factory menu access continue to work through the correct interface.
Supported Display and Audio Functions
- Factory radio and CD-related functions remain available through the original system path.
- Factory reverse display and parking camera input are supported when the vehicle configuration matches.
- The matched wiring harness is designed to connect without intentionally cutting the supported factory main wiring.
Special factory audio systems, non-standard cameras, previous aftermarket modifications or uncommon regional configurations may require additional connection instructions. Please provide the requested vehicle information when ordering so iKAGOO can prepare the correct version.
Informacije koje iKAGOO provjerava prije pripreme vaše narudžbe
To prepare the correct Audi A4 A5 MMI screen upgrade, send the vehicle details before shipment. This helps us match the screen, wiring harness, LVDS path, AUX/AMI audio route and vehicle interface.
| Model i godina vozila | Audi A4, A4L or A5 B9, model year 2017, 2018, 2019, 2020 or 2021. |
|---|---|
| Dashboard photo | Send a clear photo of your original screen, center console, climate panel and Audi controller area. |
| LHD ili RHD | Left-hand-drive and right-hand-drive layouts may need different confirmation for trim and harness routing. |
| Fabrički sistem | Confirm your original MMI screen type, factory menu, radio/CD path, AUX/AMI port and connector configuration. |
| Camera and audio | Tell us whether your vehicle has original reverse camera, 360 camera, factory amplifier or previous aftermarket modifications. |
Audi A4 A5 Android Head Unit 2017–2021 Specifications
| Vrsta proizvoda | Vehicle-specific Android head unit / Android car stereo for Audi A4, A4L and A5 B9 2017–2021. |
|---|---|
| Sistem | Android 13 system. |
| Android matična ploča | TSK platform; motherboard numbers include TSK8259 and TSK8667. |
| Procesor | 8 Core CPU. G5-8259 uses Octa-core Cortex-A53; G6-8667 uses CA75 + CA55 architecture. |
| Opcije memorije | 2+32GB, 4+64GB, 6+128GB, 8+128GB DSP CarPlay. |
| Veličina ekrana | 10.25 inch or 12.3 inch. |
| Display support | 1280×480, 1560×700 or 1920×720 depending on selected hardware and display version. |
| CarPlay / Android Auto | Wireless CarPlay and Android Auto supported. |
| Bluetooth | BT 4.0 / BT 5.0 depending on selected motherboard version. |
| Navigacija | GPS / Glonass navigation support. |
| Mreža | WiFi / 4G support. |
| Sound function | DSP 32-band EQ support with built-in DSP options. |
| Camera input | Rear view camera AHD, rear view camera CVBS and 360 panorama support where matched and configured. |
| Podaci o paketu | Listed product weight: 4.2 kg. Listed package dimensions: 40 × 24 × 20 cm. |
CarPlay Module, Factory Repair or iKAGOO Android Head Unit?
If you only want one phone feature, a CarPlay module may be enough. If you want a larger Audi B9 screen with navigation, apps, camera input, audio tuning and factory-system support, this iKAGOO upgrade is the stronger choice.
Keep Factory Screen
- Lowest effort
- No larger display
- Limited phone-app experience
- Does not modernize the cabin
Repair or Used OEM Screen
- Restores old factory function
- No Android system
- No major screen upgrade
- Still depends on old design
Modul samo za CarPlay
- Adds CarPlay function
- Usually keeps original screen size
- Less multimedia flexibility
- May not solve display-size problem
iKAGOO Android Head Unit
- 10.25” or 12.3” larger display
- Bežični CarPlay i Android Auto
- Android 13 app and navigation use
- DSP, 4G/WiFi and camera support
- Prepared harness and vehicle interface
Useful Interface and Network Details
This section keeps only two extra images to avoid slowing the product page.
Više jezika interfejsa
The multilingual interface helps owners in different regions use the system more comfortably in daily driving.
WiFi and 4G for Online Apps
WiFi and 4G support allow the Android screen to use online maps, app downloads and connected services when configured with the proper network setup.
Installation Requirements for Audi A4 A5 B9
This is an Advanced DIY installation. It is suitable for experienced DIY installers or an automotive electronics installer who is comfortable with Audi dashboard trim removal, screen replacement and vehicle-interface setup.
Main Installation Work
- Remove the original trim and factory display area carefully.
- Install the iKAGOO screen in the correct Audi B9 dashboard position.
- Connect the power cable, LVDS cable, AUX/AMI audio path, GPS antenna, WiFi antenna and USB accessories.
- Configure CANBUS, steering-wheel controls, factory menu access and sound route.
- Test reverse display, audio, Bluetooth, CarPlay, Android Auto and original controls before reassembly.
Stop Installation and Contact iKAGOO If
- Oblik konektora ili raspored pinova očigledno ne odgovara.
- A pin is bent, broken or loose.
- You notice abnormal heat, smell, smoke or repeated fuse failure.
- Napajanje ili masa se ne mogu sigurno potvrditi.
- Someone tells you to cut the factory main wiring harness.
- CANBUS, camera, amplifier or sound behavior is abnormal and cannot be explained.
Audi A4 A5 Android Head Unit 2017–2021 FAQ
Does this fit every Audi A4 and A5?
Yes, for supported Audi A4, A4L and A5 B9 vehicles from 2017–2021 when the dashboard, factory system and connector configuration match. Please provide your vehicle information before shipment so iKAGOO can prepare the correct version.
Is this only a CarPlay module?
No, this is a full Audi A4 A5 Android Head Unit 2017–2021 with Android 13, screen, motherboard, CarPlay, Android Auto, WiFi/4G, Bluetooth, DSP options, GPS and camera input support.
Does it retain the factory Audi menu?
Yes, supported original menu access and factory system functions continue to work after correct connection and configuration through the matched vehicle interface.
Will steering-wheel controls still work?
Yes, original steering-wheel controls are supported on matched Audi B9 configurations after the wiring and CANBUS settings are correctly connected and tested.
Should I choose 10.25 inch or 12.3 inch?
Yes, both can be suitable. Choose 10.25 inch for a more conservative factory-style look, or choose 12.3 inch if you want a stronger wide-screen navigation and media experience.
Da li podržava bežični CarPlay i Android Auto?
Yes, wireless CarPlay and Android Auto are supported, giving you easier access to maps, music, messages and calls on the upgraded Audi screen.
Make Your Audi A4, A4L or A5 Feel Modern Again
Choose the correct memory and screen size, then send your Audi B9 vehicle details so iKAGOO can prepare the right Android head unit, wiring harness and vehicle interface for your order.
